Bosch FCS-8000-VFD-B Flame Detection Camera DINION IP U8000MP DINION Business Type: FCS-8000-VFD-B Product number: F.01U.317.536
2019-8-12 21:19:31 View:
- Brand BOSCH
- Type FCS-8000-VFD-B
Introduction

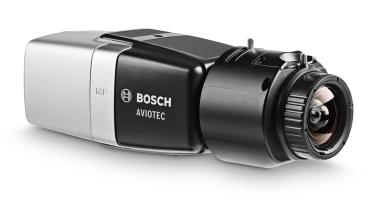

Bosch FCS-8000-VFD-B Flame Detection Camera DINION IP U8000MP
DINION IP ultra 8000 MP
Business Type: FCS-8000-VFD-B
Product number: F.01U.317.536
12MP (4K UHD), capable of presenting high-speed moving objects in extraordinary detail
Built-in Intelligent Video Analysis (IVA) for triggering related alerts and fast data retrieval
Low Network Pressure and Storage Cost
Excellent wide dynamic range (92 + 16 dB)
Long Distance Recognition by Long Focus Lens
Power Supply
Power supply 12 VDC; Ethernet power rating 48 VDC
Current consumption: 750 mA (12 VDC); 200 mA (PoE 48 VDC)
Power Consumption 9 W
PoE 802.3af (802.3at type 1) 3 categories
A sensor
Type 1/2.3_inch CMOS
Pixel 12 MP
Video Performance Dynamic Range
12 MP (4:3) mode 92 dB WDR (92+16 dB, with IAE)
4K UHD (16:9) mode 92 dB WDR (92+16 dB, with IAE)
1080p mode 98 dB WDR (98+16 dB with IAE)
Video Performance-Sensitivity (Permanent Incidental Lens Version) (3200K, 89% Reflectivity, 30% IRE, F2.45)
Color (12MP/4K UHD mode) 0.36 LX
Color (1080p mode) 0.31 LX
Black and White (12MP/4K UHD mode) 0.120 LX
Black and White (1080p mode) 0.103 LX
Video Performance-Sensitivity (Camera Body Version) (3200K, 89% Reflectivity, 30% IRE, F1.2)
Color (12MP/4K UHD mode) 0.11 LX
Color (1080p mode) 0.09 LX
Black and white (12MP/4K UHD mode) 0.037 LX
Black and White (1080p mode) 0.030lx
Video streaming
Video compression H.264 (MP); M-JPEG
Data streams: Multiple configurable H.264 and M-JPEG data streams, configurable frame rate and bandwidth. Region of Interest (ROI)
Overall IP latency: minimum 120 milliseconds, maximum 340 milliseconds
GOP structure IP, IBP, IBBP
Encoding intervals 1 to 30 [25] FPS
Encoder area up to eight areas, each with encoder quality settings
Video sharpness (horizontal x vertical)
12MP 4000x 3000 (20 FPS frame rate)
4K UHD 3840 x 2160 (frame rate of 30 fps)
7.3MP 3584 x 2016 (frame rate of 30 fps)
1080p HD 1920x 1080 (frame rate of 30 fps)
720p HD 1280x 720 (frame rate of 30 fps)
SVGA 800X 600
D1 4:3 (reduction/tailoring) 704 x 480
480p SD: 704 x 480; display: 854 x 480
432p SD 768 x 432
288p SD 512 x 288
240p SD: 352 x 240; display: 432 x 240
144p SD 256 x 144
Video function
Day/night color, black and white, automatic (adjustable switching point)
Adjustable Image Settings Contrast, Saturation and Brightness
White Balance: 2500 to 1000K, 4 automatic modes, manual modes and measurement modes
Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000) Optional Default Shutter
Backlight Compensation, Closing, Automation, Intelligent Auto Exposure
Intelligent Dynamic Noise Reduction with Time and Space Independent Adjustment Function
Contrast enhancement on/off
Definition Enhancement Level can be selected
I-Defog Intelligent Defog automatically adjusts parameters to get the best picture in foggy or blurred scenes (switchable)
Privacy occlusion 8 independent areas, fully programmable
Intelligent Video Analysis
Scene pattern: nine predefined patterns
Other functions: image flip, pixel counter, video watermarking, display marker, location
Audio stream
Standard G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps (at 16 kHz sampling rate) AAC-LC, 80 kbps (at 16 kHz sampling rate)
SNR > 50 dB
Audio Stream Full Duplex/Half Duplex
Input/Output
Analog Video Output SMB Connector, CVBS (PAL/NTSC), 1 Vpp, 75 ohms
Audio line input 1 Vrms (maximum), 18 KOO (typical value),
Audio line output 0.85 Vrms @ 1.5 kiloohms (typical value),
Audio connector 3.5 mm mono jack
Alarm input 2-way input
Alarm input activation: rated voltage + 5 VDC; maximum voltage + 40 VDC (DC with 50 KOO pull-up resistance to obtain + 3.3 VDC voltage) (lower than 0.5 V; higher than 1.4 V)
Alarm output 1 way output
Alarm output voltage 30 VAC or + 40 VDC (maximum) maximum 0.5A continuous current, 10VA (impedance load only)
Ethernet RJ45
Data Port RS 232/422/485
Local Storage
Internal RAM 10 second pre-alarm video
Memory card slots support up to 32 GB microSDHC/2 TB microSDXC cards. (It is recommended to use 6 or higher categories of SD cards for HD video recording)
Video recordings: continuous video recordings, circular video recordings. Alarm/Event/Schedule Video
Working Humidity 20% to 93% Relative Humidity
Storage Humidity - Maximum 98% Relative Humidity
Optical parameters
Lens Base Installation on Exit
Lens type (NBN-80122-F6A) 5mm F2.4, fixed focus, minimum object distance of 1.1m (3.6ft) fixed aperture lens (70 degree FoV)
Lens type (NBN-80122-F2A) 3.2 mm F2.45, fixed focus, minimum object distance of 0.45 m (1.5 feet) fixed aperture lens (112 degrees FoV)
Mechanical parameters
Dimensions (width x, Height x length) 78 x 66 x 200 mm (3.07 x 2.6 x 7.87 ft), with factory-installed lenses
Weight 860 grams (1.90 pounds), with 3.2 mm lens 870 grams (1.92 pounds), with 5 mm lens
Color RAL 9006 Titanium Metal
Tripod base bottom and top 1/4 inch 20 UNC
optics
Lens base CS base (C base with adapter ring)
