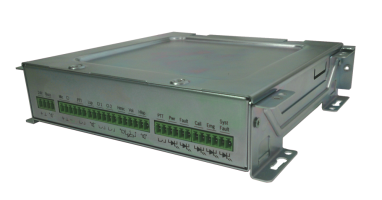

BOSCH PRS-CSRM Remote Call Station Module
Business Type: PRS-CSRM
Product number: F.01U.214.862

PRS-CSRM Remote Call Station Module
Connecting to Call Station Interface via Category 5 Cables
Distance from Praesideo Fiber Optic Network can be up to 1 km
Keyboard Connection
Connection of transducer and status LED indicator
Steady metal housing
Power consumption 4 W (48 V), no keyboard
External power supply 18 to 56 VDC
Microphone
Sensitivity - 63 to - 48 dBV
SNR > 60 dB, - 55 dBV
Frequency response 340 Hz to 14 kHz (-3 dB)
speaker out
Signal-to-noise ratio 80 dB+3 dB, maximum output time
Impedance 8 to 32 ohms
Power 100 mW (typical), 300 mW (maximum)
Headset
Input sensitivity - 52 to - 37 dBV
Headphone impedance > 16 ohms
State Output Five Open Collectors/Leakages
Maximum current (internal) 10 mA per needle, total 30 mA
Maximum voltage 56 V per needle
Maximum leakage current 100 mA per pin
Control input 2x
Operating Closed Contact (with Monitoring)
Size (height x width x depth) 43 x 183 x 164 mm (1.69 x 7.20 x 6.46 inches)
Weight 0.8 kg (1.76 pounds)
Install stackable metal housing
Working temperature - 5 C to + 55 C (+23 F to + 131 F)
Storage and transportation temperatures - 20 C to + 70 C (- 4 F to + 158 F)
Humidity 15% to 90%.
Pressure 600 to 1100 hPa
PRS-CSRM Remote Call Station Module China CN: 5,698 F.01U.214.862

PRS-CSI Call Station Interface
A compact device with installation clips, the interface between the Praesideo network and the call station connected by remote CAT-5 up to 1000 meters away, is powered by the Praesideo network.
Business Type: PRS-CSI
Product number: F.01U.126.292

Call Station Keyboard Module
The module is used to extend the custom call station to add eight programmable buttons and status indicators. You can connect up to 16 keyboard suites to the call station.
Business Type: PRS-CSKPM
Product number: F.01U.214.861

LBB4432/00 Call Station Keyboard
Call station keyboard has 8 programmable buttons and status indicator lights, you can connect up to 16 keyboards to the call station.
Business Type: LBB4432/00
Product number: F.01U.126.296

PRS-CSNKP Call Station Digital Keyboard
Call Station Digital Keyboard and LCD Display are suitable for controlling user access and area selection in large-scale systems, and can be used in combination with Call Station Keyboard.
Business Type: PRS-CSNKP
Product number: F.01U.126.285
