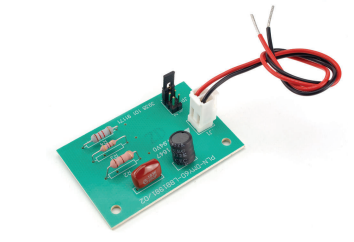

BOSCH PLN-DMY60 Line Terminal Monitoring Load
Business Type: PLN-DMY60
Product number: F.01U.012.730

Load Monitoring at the Terminal of PLN-DMY60 Line
Provide filter load at 20 kHz frequency
Allow longer speaker wiring
Three Power Settings
Installed on the built-in base of the selected Bosch loudspeaker
EN 54*16 Certification
input
Connector High Temperature Flexible Wire
Voltage 100 V loudspeaker circuit
Load 8, 20 and 60 W
Size (high x width x depth) 17 x 30 x 50 mm
Install 2 mounting openings
It weighs about 80 grams.
Working temperature - 10 C to + 55 C (+14 F to + 131 F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
Provide filter load at 20 kHz frequency
Allow longer speaker wiring
Three Power Settings
Installed on the built-in base of the selected Bosch loudspeaker
EN 54 16 Certified PLN-DMY60 60 W virtual load, 12 Chinese CN: 2,032 F.01U.012.730
The Banlie voice alarm system adopts a simple method to monitor loudspeakers by measuring impedance. When the cable is long, external factors (such as cable capacitance and speaker impedance) will adversely affect the reliability of measurement. Virtual loads provide filtered loads only at pilot audio rates. This greatly improves the reliability of impedance measurement and provides accurate Open-Circuit or short-circuit detection even when the cable is long.
basic function
In order to improve the performance of impedance measurement, Bosch Security Systems introduced the Splendor Virtual Load Device. It can enhance the loudspeaker load at 20 kHz monitoring frequency, and has a very small load in the normal sound frequency range.
When connected in parallel with the last speaker on a line, it can increase the percentage of impedance at the line terminal, thus increasing the number of speakers that can be connected. At the same time, it can also increase the surplus covered by cable capacitance, thus allowing longer cable connections.
The virtual load device is connected in parallel with the last speaker on the line (which must be a Bosch speaker) using appropriate installation bolts. It is equipped with jumper and can set the load (20 kHz) to 8, 20 and 60 W according to the calculation results of virtual load calculator.
A virtual load calculator is a spreadsheet that can use macros to calculate whether or not virtual loads can be used by related applications and how much the optimal load settings should be. Spreadsheets are available from all Bosch dealers.
Certificate and Accreditation
Anti-interference meets EN 50130-4 standard
Emergency compliance with EN 54*16*
* Cooperate with voice alarm system, and install according to installation and user instructions.
Loading time
Regional certification
European CE Conformity Statement
CPD
Polish CNBOP
Enclosure
Quantitative components
12 PLN-DMY60 Splendid Virtual Load Device
1 Application Note
technical specifications
Electrical Indicators
input
Connector High Temperature Flexible Wire
Voltage 100 V loudspeaker circuit
Load 8, 20 and 60 W
Mechanical index
Size (high x width x depth) 17 x 30 x 50 mm
Installation of WLS II
It weighs about 80 grams.
Environmental requirements
Operating temperature - 10 C to + 55 C (14 F to + 131 F)
Storage Temperature - 40C to + 70C (- 40F to + 158 F)
Relative humidity < 95%
Ordering Information
PLN_DMY60 Splendid Virtual Load Device
Virtual Load Device (12 in each set).
Order No. PLN-DMY60
