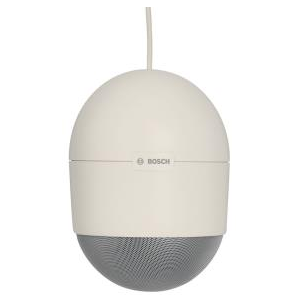

BOSCH LS1-UC20E-1 Suspension Spherical Speaker, 20W

Business Type: LS1-UC20E-1
Product number: F.01U.081.415

LS1-UC20E-1 Suspension Spherical Speaker, 20W
Excellent voice and music reproduction effect
5 m connecting cable
Provide optional safety cables
Waterproof and dustproof grade conforms to IP 65 standard
EN 54_24 Certification
F.01U.081.4151,158
LS1-UC20E-1 China
20W suspended spherical loudspeaker, EVAC
Maximum power 30 W
Rated power 20/10/5/2.5W
Sound pressure level of 99 dB/86 dB at 20 W/1 W (1 kHz, 1 m)
Sound pressure level 91 dB/78 dB (sound pressure level) at 20W/1W (1kHz, 4m)
The open angle of 1 kHz/4 kHz (-6 dB) is 220 [/ 65].
Effective frequency range (-10 dB) 80 Hz to 20 kHz
Rated voltage rated impedance 100 V
20 W 500 Ohm
10 W 1000 Ohm
5W 2000 Ohm
2.5 W 4000 Ohm
Connector 3-pin screw terminal
Size (diameter x length) 185 x 254 mm (7.3 x 10 inches)
It weighs 3 kilograms (6.6 pounds)
Color White (RAL 9010)
Material ABS
Working temperature - 25C to + 55C (- 13F to + 131F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
