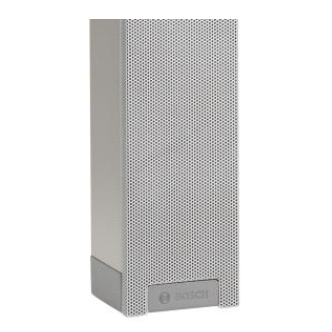

BOSCH LBC3200/00 linear array loudspeaker, 30W Business Type: LBC3200/00 Product number: F.01U.505.999
Update: 2019/9/10 View:
- Brand: BOSCH
- Type: LBC3200/00
Introduction
BOSCH LBC3200/00 linear array loudspeaker, 30W
Business Type: LBC3200/00
Product number: F.01U.505.999
LBC3200/00 linear array loudspeaker, 30W
Wide listening area
Excellent voice and musical clarity
Sound distributes naturally and evenly in the room.
Perfect combination of excellent sound performance and ease of use
F.01U.505.999 LBC3200/00 30W Passive Linear Array China 845.00 1690
EN 54_24 Certification
F.01U.505.999 2,150
LBC3200/00
Pillar, 30 W (USL 600)
China
Maximum power 45 W
Rated power 30/15/7.5 W
Sound pressure level 106/91 dB at 30W/1W (1kHz, 1m)
Sound pressure level 91/76 dB at 30W/1W (1kHz, 4m)
Effective frequency range (-10 dB) 190 Hz to 18 kHz
Open Angle 1kHz/4kHz (-6dB)
Horizontal 220 degree/130 degree
Vertical 70 degree/18 degree
Rated Input Voltage Rated Impedance 100 V
30 W 333 Ohm
15 W 667 Ohm
7.5 W 1333 Ohm
Connector screw terminal junction box
Dimensions (high x width x depth) 600 x 80 x 90 mm (23.62 x 3.15 x 3.54 inches)
It weighs 3 kilograms (6.6 pounds)
Light grey (RAL 9022)
Working temperature - 25 C to + 55 C (- 13 F to + 131 F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
