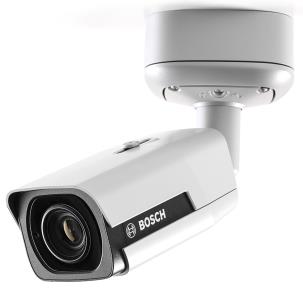

Bosch NTI-51022-A3S 2MP 2.8-12mm, automatic, IP66 SMB bullet type outdoor POE gun machine network camera


Business Type: NTI-51022-A3S
Product number: F.01U.359.507
NTI-51022-A3S Bullet 2MP 2.8-12mm, automatic, IP66 SMB
It's easier to install with auto zoom/focus lens, setup wizard and pre-configuration mode.
Built-in infrared light to view objects 30 meters (98 feet) away
1080p sharpness, providing clear images
Areas of interest and E-PTZ
IP66 Surface Installation Box
Power Supply
Input voltage Ethernet power supply (rated 48 VDC); or 24 VAC + 10% / +12 VDC + 10%.
PoE IEEE Standard IEEE 802.3af (802.3at Type 1) Power Level: 3 Categories
950 mA (12 VDC) 750 mA (24 VAC) 260 mA (PoE)
sensor
Sensor type 1/2.8 inch CMOS
Effective picture pixels 1937 (horizontal) x 1097 (vertical); about 2.12 MP
Video Performance-Sensitivity
Sensitivity --(3200K, reflectivity 89%, F1.4, 30IRE)
Color 0.07 LX
Black and white 0.05 LX
0.0 LX with infrared lamp
Video Performance Dynamic Range
Dynamic Range 76 dB WDR
Video streaming
Video compression H.264; M-JPEG
Data stream Multiple configurable H.264 and M-JPEG data streams, configurable frame rate and bandwidth. Region of Interest (ROI)
Camera processing delay < 55 ms (maximum average at 1080 p30)
GOP structure IP
Encoding time interval 1 to 25 [30] FPS
There are up to eight coding areas, each of which has encoder quality settings.
Video sharpness (horizontal x vertical)
1080p HD 1920x 1080
1.3 MP (5:4) (cropping) 1280 x 1024
720p HD 1280 x 720
D1 4:3 (cropping) 704 x 480
432p SD 768 x 432
288p SD 512 x 288
144p SD 256 x 144
Camera Installation
Basic frame rate 25/30 FPS (PAL/NTSC analog output)
Camera LED lights on/off
Mirror image on/off
Analog Output Gate, 4:3 Mailbox, 4:3 Cutting, 16:9
Location coordinates
Lens guide zoom, autofocus
Video Function - Color
Adjustable image setting contrast, saturation and brightness
White Balance 2500 to 1000K, four automatic modes (basic, standard, sodium lamp, main color), manual mode and holding mode
Video Function-ALC
Day/night automatic (adjustable), color, black and white
Automatic Electronic Shutter (AES); Optional Fixed Shutter (1/25[30] to 1/15000); Default Shutter
Adjustable Infrared Intensity
Video Function-Enhanced
Definition can be selected at the Definition Enhancement Level
Backlight Compensation on/off
Contrast enhancement on/off
Intelligent Dynamic Noise Reduction with Time and Space Independent Regulation Function
I-Defog Intelligent Defog automatically adjusts parameters to get the best picture in foggy or blurred scenes (switchable)
SNR > 55dB
Video analysis
Configure Silent VCA/Profile 1/2/Reservation/Trigger Events
Analysis Type MOTION+
Damage detection can be shielded
Other functions
Scene mode 9 default modes, timetable
Privacy occludes eight separate areas and is fully programmable
Video Verification Gate/Watermarking/MD5/SHA-1/SHA-256
Display tag name; logo; time; alarm information
Pixel counter optional area
Local storage
Internal RAM 60-second pre-alarm video
Memory card slots support up to 32 GB microSDHC/2 TB microSDXC cards. (It is recommended to use 6 or higher categories of memory cards for HD video recording)
Video Continuous Video, Cyclic Video, Alarm/Event/Schedule Video
night vision
30 meters (98 feet)
LED 4 LED High Efficiency Array, 850 Nanometers
Camera lens
Lens type 2.8mm to 12mm autozoom, DC aperture F1.4-360
Lens Base Plate Installation
Horizontal field of view 33-100 degrees
Vertical field of view 19-52 degrees
Input/Output Connection
Analog Video Output CVBS, 1 Vpp, BNC Connector, 75 Ohms, About 500 TV Line Optional Standards
Alarm input short circuit or DC 5V activation
The maximum input ratings of alarm output are 0.5A, 30 VAC/40 VDC
Audio input wire; 10 kOH (typical) 0.707 Vrms
Audio output wire; 16 kOH (typical) 0.707 Vrms
Network Connector RJ45
Audio stream
Standard G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps (at 16 kHz sampling rate) AAC-LC, 80 kbps (at 16 kHz sampling rate)
SNR > 50 dB
Full/Half Duplex Audio Stream
Software
Device Discovery IP Helper
Device configuration via web browser or Configuration Manager
Firmware updates can be programmed remotely
Software View Web Browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third-party software
Latest firmware and software http://downloadstore.boschsecurity.com/
network
Protocol IPv4, IPv6, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, HTTP, HTTPS, RTTP, HTTP, HTTPS, RTP/V2/V3, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, 802.1x, DNS, DNSv6, DNSv6, DDNDNS (DyDNS. org, selfDNHOST. De De de, no-ip, no-ip, SMIP, com, SMMP V2/V3, DP, DiffServ (QoS), LLDP, SOAP, Dropbox (), CHAP, digest authentication
Encrypted TLS 1.0/1.2, AES128, AES256
Ethernet 10/100 Base-T, Automatic Detection, Half-Duplex/Full-Duplex
Connect Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G; GB/T 28181
Mechanical parameters
3-axis adjustment (horizontal/vertical/rotary) 360/90/360
Dimensions (high x width x thickness) 271 x 90 x 90 mm (10.7 x 3.5 x 3.5 inches) (excluding SMB)
Camera weight (excluding SMB) 1.3 kg (2.9 pounds)
SMB weighs 0.67 kg (1.48 pounds)
Color RAL 9006
Environmental parameters
The operating temperature can be operated continuously from - 30 C to + 60 C (- 22 F to + 140 F); according to NEMA.
