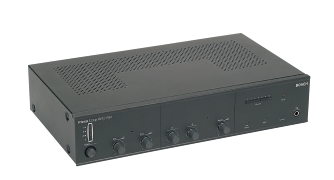

PLN-1LA10 Induction Loop Amplifier
High Power Current Driven Amplifier
2 microphone/line input, 1 preferred input (100 V)
Optional frequency range and tone control
Radiation Limiter and Automatic Gain Control (AGC)
Integration with EN 54*16 and EN 60849 compliant systems
PLN-1LA10 Loop Amplifier China CN: 5,802 F.01U.522.377
Main power supply
Voltage 230/115 VAC, +10%, 50/60 Hz
When the inrush current is 230 VAC, the current is 7 A/115 VAC, and the current is 14A.
Maximum power consumption 500 VA
performance
Output current 10A
Frequency response 50 Hz to 10 kHz (+1/-3dB, -10dB reference rated output)
Distortion < 1% (rated output power), 1 kHz
Bass Control - 8/+8dB, 100Hz
Tenor Control - 8/+8dB, 10kHz
Microphone/line input 2x
Connector 3-pin XLR, balanced microphone/line level (switchable)
Sensitivity 1 mV/1 V (microphone/line)
Impedance > 1 kohm
Dynamic range 100 dB
Signal-to-noise ratio (flat at maximum volume) 75 dB
Remains 25 dB
Mirage Power 16 V (Switchable)
VOX Functional Input 1 (Switchable) Mute Input 2
VOX Sensitivity - 10 dB Reference Rated Input
Priority input
Connector screw
Sensitivity 100 V, Transformer Balance
Impedance > 100 kohm
Signal-to-noise ratio (flat at maximum volume) 63 dB
Remains 25 dB
Pilot sound detection - 20 dB, refer to 100 V (10 V)
Pilot tone threshold - 26 dB, refer to 100 V (5 V)
Main input * 1x
Connector 1/4 inch TS jack
Line Output
Connector 3-pin XLR, equalization
Rated level 1V
Impedance 200 ohm
Loop Output
Connector screw
Auxiliary output (for main input of other PLN-1LA10)
Connector 1/4 inch TS jack, 0 to 90 degrees
Fault Relay
Connector screw
Contacts 100V, 2A (No Voltage, SPDT)
Dimensions (high x width x depth) 94 x 430 x 320 mm (19 inches wide, 2U high)
It weighs about 11.6 kilograms.
Installation of stand-alone, 19-inch rack
Color carbon black
Working temperature - 10 C to + 55 C (+14 F to + 131 F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
Fan Noise Level < 35 dB Sound Pressure Level, 1 m, Temperature Control
