AXIS F Series Onboard Cameras Flexible modular cameras for almost any environment

Update: 2017/9/15 View:

Brand: AXIS
Type: AXIS F Series

Introduction

Flexible modular cameras for almost any environment

Flexible, rugged, discreet design
1-channel and 4-channel main units

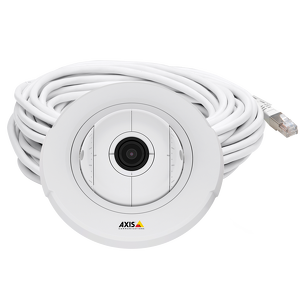

Choice of indoor, outdoor, standard, varifocal, pinhole, fisheye and dome sensor units
Wide Dynamic Range and Axis’ Zipstream technology
Two-way audio, input/output ports
Local storage, PoE, 8-28 V DC

Discreet cameras for wide application

AXIS F Series offers flexible, high-performance HDTV cameras for extremely discreet indoor, outdoor and in-vehicle surveillance applications. They are ideal for ATMs (automated teller machines), banks, stores, hotels, as well as rugged environments such as emergency vehicles, buses, trams and trucks.

Divided concept

AXIS F Series is based on a divided network camera concept, where the camera is split into a sensor unit—made up of a lens and image sensor with a cable—and a main unit, which is the body of a camera. The divided concept enables flexibility in the choice of hardware, as well as in the installation. The small sensor unit can be installed discreetly in tight places, while the long cable from the sensor unit to the main unit provides the flexibility to place the main unit where there is space. The main or sensor unit can be easily relocated or changed after the initial installation, giving users additional flexibility.

Wide selection

AXIS F Series comprises one-channel AXIS F41 Main Unit, four-channel AXIS F34 and AXIS F44 Main Units, and AXIS F Sensor Units with different lens types, form factors and price points. The series also includes AXIS F34 Surveillance System, a complete hardware and software solution aimed at small stores and offices.

With the exception of AXIS F34 Surveillance System, AXIS F main units and sensor units are sold separately to give customers the ability to put together the hardware features that best suit the application.

Build your own camera system

Click on the numbers at right to read more about the different components.

Main unit

The main unit houses the processor, network, power and other connections. It determines, among other things, the video streaming performance, the image settings available (such as wide dynamic range), and analytics.

One-channel and four-channel main units are available. When there are up to four closely situated surveillance areas to be covered, the four-channel main units are cost-effective solutions as they can stream videos from four sensor units simultaneously.

A complete solution in one box

AXIS F34 Surveillance System is a highly discreet four-camera surveillance system that is ideal for small stores and offices. The solution comes with the necessary hardware and software for a complete remote video monitoring and management system.

AXIS F34 Surveillance System

	AXIS F34	AXIS F41	AXIS F44 Dual Audio Input
Connection to no. of sensor units	4	1	4
Max video resolution	1920 x 1080	1920 x 1200	1920 x 1080
WDR – Forensic Capture
Quad view
Zipstream
Rugged
Two-way audio
Alarm in-/outputs
Power over Ethernet
DC power
AXIS Camera Application Platform
Edge storage

	AXIS F1004	AXIS F1004 Bullet	AXIS F1004 Pinhole	AXIS F1005-E	AXIS F1015
Outdoor
Horizontal angle of view	102° in 720p	102° in 720p	57° in 720p	113° in 1080p	53° to 108° in 1080p
Lens	Standard	Standard	Pinhole	Standard	Varifocal
Min. illumination Color	0.4 lux	0.4 lux	0.5 lux	0.3 lux	0.3 lux

	AXIS F1025	AXIS F1035-E	AXIS F4005	AXIS F4005-E
Outdoor
Horizontal angle of view	92° in 1080p	194° in 1080p	113° in 1080p	110° in 1080p
Lens	Pinhole	Fisheye	Standard	Standard
Min. illumination Color	0.3 lux	0.3 lux	0.3 lux	0.3 lux
