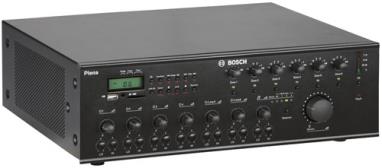

BOSCH PLN-6AIO240 Integrated Amplifier, 6 Zones, 240W
Business Type: PLN-6AIO240
Product number: F.01U.275.392

PLN-6AIO 240 Integrated Amplifier, 6 Zones, 240W
Background Music and Paging Solution for Integrated Computer
Area 6 Paging System
Built-in AM/FM tuner with preset channel
MP3 Player for USB Devices and SD Cards
Optional Call Station and Wall Panel with Local Audio Source and Remote Control
PLN-6AIO 2 406 Subarea 240W Spotlight Integrated System China CN: 14,352 F.01U.275.392
Main power supply
Voltage 115/230 Vac +/-15%, 50/60 Hz
Fuse rating 6.3 A (230 Vac) 10 A (115 Vac)
Power consumption 720 W (maximum)
performance
Frequency Response Microphone Input: 100 Hz-15 kHz+1/-3 dB Line Input: 50 Hz-20 kHz+1/-3 dB (+1/3 dB@10 dB Reference Rated Output)
Distortion < 1% (rated output power), 1 kHz
Bass Control +/-8 dB@ 100 Hz
Tenor control +/-8 dB@ 10 kHz
Remote Device 2x
Call station input RJ45 for PLN 6CS
Wall panel input RJ45 for PLN 4S6Z
Microphone/Line Input 1 4: Microphone Input 5 6: Microphone/Line Input
RJ453 pin XLR for PLE 1CS or PLE 1SCS, Equilibrium, Illusion
Input 2-6 (with signal detectors for priority/push-in) 3-pin XLR, equalization, illusion
Sensitivity 1.5 mV (microphone); 200 mV (line)
Impedance > 600 ohm (microphone); > 10 kohm (line)
Signal-to-noise ratio (flat at maximum volume)>65 dBA (microphone)>70 dBA (line)
CMRR > 40 dB (50 Hz to 20 kHz)
Remains > 25 dB
Phantom Power 18 V - No Load
The trigger time of the level detector (VOX) on input 1-6 is 150 milliseconds; the release time is 3 seconds.
Battery power supply
Voltage 24 Vdc (22 Vdc-28 Vdc)
Current 12A
Music input 3x
Connector Lotus Blossom, Stereo to Mono Channel
Sensitivity 500 mV (input 1/2) and 300 mV (input 3)
Impedance 10 kohm
Signal-to-noise ratio (flat at maximum volume)>65 dBA
Signal-to-noise ratio (minimum volume/flat mute)>75 dBA
Remains > 20 dB
Emergency/Telephone 1x
Connector 7-pin European pluggable screw terminal
Sensitivity line input 100 mV
Sensitivity 100V Input 100V
Impedance line input 600 ohm
Signal-to-noise ratio (flat at maximum volume)>70 dBA
Voltage Detector (VOX) threshold 50 mV; trigger time 150 ms; release time 3 seconds
Insert 1 x
Connector Lotus Blossom
Rated level 1V
Impedance > 10 kohm
FM Tuner
Distortion < 1%
Total harmonic distortion (1 kHz) < 0.8%
FM range 87.5 - 108 MHz
Frequency response 60 Hz-12 kHz
IF Suppression (> 70 dB)
Mirror frequency suppression (> 50 dB)
Signal to Noise Ratio (>50 dB)
IF 10.7 MHz
Input sensitivity 8 mV
Automatic Tuning Sensitivity <50 UV
Antenna input 75 ohm (coaxial)
AM tuner
AM range 530 - 1602 kHz
Input sensitivity 30 mV
Digital audio player 1x
Frequency response 20 Hz to 20 kHz
SNR > 70 dBA
Total harmonic distortion (1 kHz) < 1%
Supported formats MP3, 32 - 320 kbps
Main/Music Output 1x
Connector 3-pin XLR, equalization
Rated level 1V
Impedance < 600 ohm
Speaker Output 100 V
Connector screw, floating
Total power 240 W
Direct output 100/70 V, 8 ohm
Regional output 1-6 100/70/50/35/25/17 V
Dimensions (high x width x depth) 133 x 430 x 365 mm (including supporting feet) (19 inches wide, 3 U high)
It weighs about 18 kilograms.
Installation of stand-alone, 19-inch rack
Color carbon black
Working temperature - 10 C to + 45 C (14 F to + 113 F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95% (without condensation)
Noise < 45 dB sound pressure level, measured at 1 meter above the device
MTBF 1200000 hours, 25 degrees C hours
