BOSCH LB1-UM06E-1 speaker, metal, round
Business Type: LB1-UM06E-1
Product number: F.01U.126.924

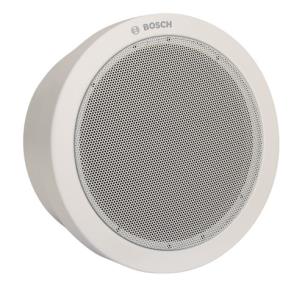

LB1-UM06E-1 speaker, metal, round
Suitable for voice and music playback
Strong and durable metal case
Surface Installation and/or Embedded Installation
Optional circuit/speaker monitoring board can be installed inside
Recommended for emergency evacuation systems
Compliance with International Installation and Safety Regulations
EN 54_24 Certification
Compliance with BS 5839_8 and EN 60849 standards
LB1-UM06E-16W round metal speaker (EVAC) China CN: 578 F.01U.126.924
F.01U.126.924 735
LB1-UM06E-1
Round metal speaker, 6W
Maximum power 9 W
Rating Power (PHC) 6W
Power tap 6/3/1.5/0.75W
Sound pressure level 94/86 dB at 6 W/1 W (1 kHz, 1 m)
Sound pressure level 82/74 dB at 6W/1W (1kHz, 4m)
Effective frequency range (-10 dB) 160 Hz to 20 kHz
The open angle of 1 kHz/4 kHz (-6 dB) is 180 / 56.
Rated input voltage, rated impedance 70 V, 100 V
6W 835 Ohm, 1667 Ohm
3W 1667 Ohm, 3333 Ohm
1.5 W 3333 Ohm, 6667 Ohm
0.75 W 6667 Ohm, 13333 Ohm
Connector 3-pin threaded terminal box
Dimension (width x thickness) 199 x 105 mm (7.8 x 4.1 inch)
Weight 1.23 kg (2.71 pounds)
Color White (RAL 9010)
Material (Bottom Box and Mask) Steel
Speaker size 152.4 mm (6 inches)
Magnets weigh 53 grams (1.9 ounces)
Working temperature - 25C to + 55C (- 13F to + 131F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
