BOSCH LB1-CW06-D1 speaker, 6W, corner mounted, Black

Business Type: LB1-CW06-D1

Product number: F.01U.283.976

LB1-CW06-D1 speaker, 6W, corner mounted, black
Special Modeling for Corner Installation

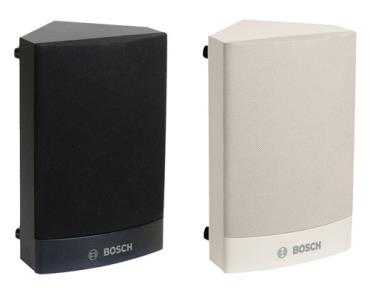

LB1-CW06-D1 6W speaker, black, corner mounted Malaysian CN: 320 F.01U.283.976
LB1-CW06-L1 6W speaker, white, corner mounted Malaysian CN: 320 F.01U.283.977

Technical data
Electrical*
Maximum power 9 W
Rated power 6 / 3 / 1.5 / 0.75 W
Sound pressure level
at 6 W / 1 W (1 kHz,
1 m)
99 dB / 91 dB (SPL)
Effective frequency
range (-10 dB)
198 Hz to 15 kHz
Opening angle 1 kHz / 4 kHz (-6 dB)
   horizontal 164° / 82°
   vertical n.a.
Rated input voltage 70 V / 100 V
Rated impedance 835 / 1667 ohm
Connector 2x 5‑pole push‑in terminal
block
* Technical performance data acc. to
IEC 60268‑5
Mechanical
Dimensions
(H x W x D)
240 x 151 x 138 mm
(9.5 x 5.9 x 5.6 in)
Weight 1.31 kg (2.88 lb)
Color Black (D1) or white (L1)
   cabinet / cloth (D1) Matches RAL 9004 /
RAL 9004
   cabinet / cloth (L1) Matches RAL 9010 /
RAL 7044
Environmental
Operating temperature -25 ºC to +55 ºC
(-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC
(-40 ºF to +158 ºF)
Relative humidity <95%
