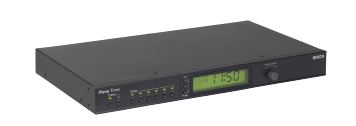

BOSCH PLN-6TMW Cycle Timer Splendor Programmable Timer
Business Type: PLN-6TMW
Product number: F.01U.012.817

PLN-6TMW Cycle Timer
Two Weekly Procedures
14 kinds of music
Six contacts output
Automatic Daylight Saving Time/Standard Time
Volume Control of Background Music
Keep and pause functions
Programming on the device and through the attached PC program
An Ideal Assistant for Publishing Timing Information with Banlie Information Manager and Voice Alarm Controller
PLN-6TMW Programmable Timer China CN: 11,802 F.01U.012.817
Main power supply
Voltage 230/115 VAC, +15%, 50/60 Hz
Maximum power consumption 30 W
Battery power supply
Voltage 24 VDC, +15%/-15%
Maximum current 1A
performance
Frequency response 20 Hz to 20 kHz (-3 dB)
Total harmonic distortion < 0.01% (1kHz)
SNR < 85 dB
Dynamic range > 100 dB
Line input 1x
Connector XLR Balance Formula
Sensitivity 1 V
Impedance > 5 kohm
Remains > 25 dB
Line Output 1x
Connector XLR Balance Formula
Impedance > 100 ohm
Clock
Accuracy (asynchronous input) 25C: better than <2 seconds/month-10 C to 55C:<3.5 seconds/month
Synchronization input is always open (no), contact closure is synchronized with the closest time
Output contact
Connector MC 1,5/6-ST-3,5
Level 100 V, 1A, no voltage
Size (height x width x depth) 48 x 440 x 312 mm 1.88 x 17.32 x 12.28 inches (without brackets, with legs) 44 x 483 x 312 mm 1.73 x 19.01 x 12.28 inches (with brackets, without legs)
It weighs about 3 kilograms.
Installation of stand-alone, 19-inch rack
Color carbon black and silver white
Working temperature - 10 C to + 55 C (+14 F to + 131 F)
Storage and transportation temperatures - 40C to + 70C (- 40F to + 158F)
Relative humidity < 95%
