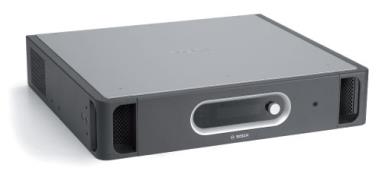

BOSCH PRS-4OMI4 OMNEO Interface
Business Type: PRS-4OMI4
Product number: F.01U.303.397

PRS-4OMI4 OMNEO Interface
Four-way OMNEO or Dante `Audio Input and Output
Eight monitored control inputs and five controlled outputs
Redundant Fiber Optic Network Connection
Redundant OMNEO Network Connection
Headphone Connection and VU Meter for Audio Monitoring
PRS-4OMI4 OMNEO Interface Germany CN: 39,150 F.01U.303.397
Power supply voltage 24 to 48 VDC
Power consumption 10 W (DC)
Audio Transmission Ethernet (100/1000 Base-T)
Each OMNEO interface has four input/four output channels.
Compliance IEEE 802.3
Audio transmission 24-bit
Sampling rate 48 kHz
Delay time < 1 ms
Ensuring Integrity Watchdog
Control input 8x
Connector Removable Screw Terminal
Operating Closed Contact (with Monitoring)
Control output 5x
Connector Removable Screw Terminal
Size (high x width x depth)
Desktop mounting, with support foot 92 x 440 x 400 mm (3.6 x 17.3 x 15.7 inches)
19 inch cabinet mounted with bracket 88 x 483 x 400 mm (3.5 x 19 x 15.7 inch)
40 mm (1.6 inch) in front of the bracket
360 mm (14.2 inches) behind the bracket
Weight 6 kg (13.2 pounds)
Install desktop installation, 19 inch cabinet installation
Color Carbon Black (PH 10736) and Silver White
Working temperature - 5 C to + 55 C (23 F to + 55 F)
Storage and transportation temperatures - 20 C to + 70 C (- 4 F to + 158 F)
Humidity 15% to 90%.
Pressure 600 to 1100 hPa
