安讯士AXIS T8646 PoE+ over Coax Blade Kit Cost-efficient migration to network video for larger installations

更新：2017-9-16 12:43:35 点击：

品牌：安讯士AXIS
型号： AXIS T8646 PoE+

产品介绍

Cost-efficient migration to network video for larger installations

Reuse Coax cables and benefit from PoE+
Fits Axis encoder chassis for low installation costs
Cost-effective power supply – two options available
Compact, high-density solution

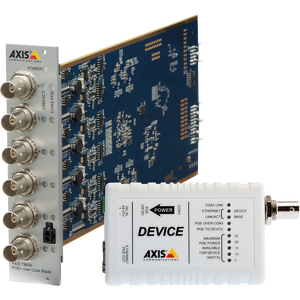

The complete kit contains one AXIS T8646 PoE+ over Coax Blade and six AXIS T8642 PoE+ over Coax Devices.

If you are using Axis video encoder blades with any Axis video encoder chassis in your current surveillance system, AXIS T8646 PoE+ over Coax Blade Kits are the most efficient way to migrate to a network video solution – and keep your Coax cabling. Each AXIS T8646 PoE+ over Coax Blade Kit comes with one AXIS T8646 PoE+ over Coax Blade and six AXIS T8642 PoE+ over Coax Devices for six cameras.

A cost effective configuration capable of powering up to 36 cameras (six blades).

You already own the chassis

The six-channel blade kit can be used with any Axis video encoder chassis or an AXIS 291 1U Video Server Rack. You can simply pull out encoder blades that are no longer needed and replace them with AXIS T8646 PoE+ over Coax Blades. Installation costs are low because there’s no need to purchase new chassis. And you can use any combination of encoder blades and PoE+ over Coax blades, so you can migrate to IP at your own pace.

Let your Coax cables do double-duty

AXIS T8646 PoE+ over Coax Blade Kit lets you reuse hard-to-replace or long-range Coax cabling when you replace your analog cameras with Axis network cameras. And you can integrate Power over Ethernet over Coax for efficient power management. Range distances depend on the power required and the type of cable quality.

Range

media_converters_t8646_t8082_chassis_1605

A modular solution that is ideal for large installations based on AXIS Q7920 Video Encoder Chassis.

A compact – and powerful – solution

The Axis chassis acts as a network switch, so you won’t have to purchase and install separate switches. Simply connect AXIS T8646 PoE+ over Coax Blades to your choice of two Axis rack-mounted, power supply solutions (AXIS T8085 or AXIS T8082), for a compact, and cost-effective modular installation. You can, for example, run up to 36 cameras using one 500-watt AXIS T8085 PS57 500W 1U power source. And you can connect to a backup power source for extra reliability. Or, use AXIS T8082 PS57 Chassis 2KW 1U for even bigger installations. It consists of a power supply chassis that comes with two 1 KW power supply modules and has extra slots for two more 1K power supply modules. So the total possible effect is 4K with built-in redundancy.

适合使用产品Compatible products

AXIS M1025 AXIS M1054 AXIS M1065-L AXIS M1103 AXIS M1104 AXIS M1113 AXIS M1113-E AXIS M1114
AXIS M1114-E AXIS M1124 AXIS M1124-E AXIS M1125 AXIS M1125-E AXIS M1143-L AXIS M1144-L AXIS M1145
AXIS M1145-L AXIS M2014-E AXIS M2025-LE AXIS M2026-LE AXIS M2026-LE Mk II AXIS M3004-V AXIS M3005-V
AXIS M3006-V AXIS M3007-P AXIS M3007-PV AXIS M3011 AXIS M3014 AXIS M3024-LVE AXIS M3025-VE AXIS M3026-VE
AXIS M3027-PVE AXIS M3037-PVE AXIS M3044-V AXIS M3045-V AXIS M3046-V AXIS M3047-P AXIS M3048-P AXIS M3104-L
AXIS M3104-LVE AXIS M3105-L AXIS M3105-LVE AXIS M3106-L AXIS M3106-L Mk II AXIS M3106-LVE AXIS M3203
AXIS M3203-V AXIS M3204 AXIS M3204-V AXIS M5013 AXIS M5013-V AXIS M5014 AXIS M5014-V AXIS P1204 AXIS P1214
AXIS P1214-E AXIS P1224-E AXIS P1244 AXIS P1245 AXIS P1254 AXIS P1264 AXIS P1265 AXIS P1275 AXIS P1311

AXIS P1343 AXIS P1343-E AXIS P1344 AXIS P1344-E AXIS P1346 AXIS P1346-E A XIS P1347 AXIS P1347-E AXIS P1353
AXIS P1353-E AXIS P1354 AXIS P1354-E AXIS P1355 AXIS P1355-E AXIS P1357 AXIS P1357-E AXIS P1364 AXIS P1364-E
AXIS P1365 AXIS P1365 Mk II AXIS P1365-E AXIS P1365-E Mk II AXIS P1367 AXIS P1367-E AXIS P1368-E AXIS P1405-E
AXIS P1405-LE AXIS P1405-LE Mk II AXIS P1425-E AXIS P1425-LE AXIS P1425-LE Mk II AXIS P1427-E AXIS P1427-LE
AXIS P1428-E AXIS P1435-E AXIS P1435-LE AXIS P3214-V AXIS P3214-VE AXIS P3215-V AXIS P3215-VE AXIS P3224-LV
AXIS P3224-LV Mk II AXIS P3224-LVE AXIS P3224-LVE Mk II AXIS P3224-V Mk II AXIS P3224-VE Mk II AXIS P3225-LV
AXIS P3225-LV Mk II AXIS P3225-LVE AXIS P3225-LVE Mk II AXIS P3225-V Mk II AXIS P3225-VE Mk II AXIS P3227-LV
AXIS P3227-LVE AXIS P3228-LV AXIS P3228-LVE AXIS P3301 AXIS P3301-V AXIS P3304 AXIS P3304-V AXIS P3343

AXIS P3343-V AXIS P3343-VE AXIS P3344 AXIS P3344-V AXIS P3344-VE AXIS P3346 AXIS P3346-V AXIS P3346-VE
AXIS P3353 AXIS P3354 AXIS P3363-V AXIS P3363-VE AXIS P3364-LV AXIS P3364-LVE AXIS P3364-V AXIS P3364-VE
AXIS P3365-V AXIS P3365-VE AXIS P3367-V AXIS P3367-VE AXIS P3384-V AXIS P3384-VE AXIS P3707-PE AXIS P5414-E
AXIS P5415-E AXIS P5512 AXIS P5512-E AXIS P5514 AXIS P5514-E AXIS P5515 AXIS P5515-E AXIS P5522 AXIS P5522-E
AXIS P5532 AXIS P5532-E AXIS P5534 AXIS P5534-E AXIS P5544 AXIS P5624-E AXIS P5624-E Mk II AXIS P5635-E
AXIS P5635-E Mk II AXIS P8524 AXIS P8535 AXIS P8804 AXIS Q1602 AXIS Q1602-E AXIS Q1604 AXIS Q1604-E
AXIS Q1614 AXIS Q1614-E AXIS Q1615 AXIS Q1615 Mk II AXIS Q1615-E AXIS Q1615-E Mk II

AXIS Q1635 AXIS Q1635-E AXIS Q1659 AXIS Q1755 AXIS Q1755-E AXIS Q1765-LE AXIS Q1765-LE PT Mount
AXIS Q1775 AXIS Q1775-E AXIS Q1910 AXIS Q1910-E AXIS Q1921 AXIS Q1921-E AXIS Q1922 AXIS Q1922-E
AXIS Q1931-E AXIS Q1931-E PT Mount AXIS Q1932-E AXIS Q1932-E PT Mount AXIS Q1941-E AXIS Q1941-E PT Mount
AXIS Q1942-E AXIS Q1942-E PT Mount AXIS Q2901-E AXIS Q2901-E PT Mount AXIS Q3504-V AXIS Q3504-VE
AXIS Q3505-SVE Mk II AXIS Q3505-V AXIS Q3505-V Mk II AXIS Q3505-VE AXIS Q3505-VE Mk II AXIS Q3615-VE
AXIS Q3617-VE AXIS Q3708-PVE AXIS Q3709-PVE AXIS Q6032 AXIS Q6034 AXIS Q6035 AXIS Q6042 AXIS Q6044
AXIS Q6045 AXIS Q6045 Mk II AXIS Q6052 AXIS Q6054 AXIS Q6054 Mk II AXIS Q6055 AXIS Q6114-E AXIS Q6115-E
AXIS Q6128-E AXIS Q6155-E AXIS Q8414-LVS AXIS Q8631-E AXIS Q8632-E AXIS Q8641-E AXIS Q8642-E
AXIS Q8665-E AXIS Q8665-LE AXIS Q8685-E AXIS Q8685-LE
