安讯士AXIS T8612 SFP Module LC.SX Multi-mode fiber module for up to 550 m transmission range

更新：2017-9-16 12:07:14 点击：

品牌：安讯士AXIS
型号： AXIS T8612

产品介绍

Multi-mode fiber module for up to 550 m transmission range

Up to 550 m range
Multi-mode fiber
Link-loss feature
Industrial grade – extended temperature range
Complies with SFP MSA

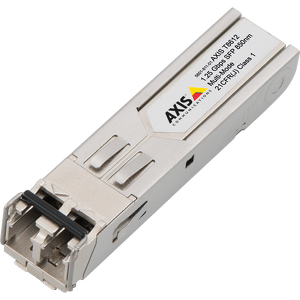

AXIS T8612 SFP Module LC.SX is a small form-factor pluggable (SFP) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature range (between -40 °C to 65°C), and it includes loss of signal feature that enable network redundancy.

Complying with SFP Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Short wavelength (850 nm) VCSEL laser diodes enable data transmission up to 550 m on a multimode 50/125 μm optical fiber. The module is tested and verified with Axis products such as AXIS T8516 PoE+ Network Switch.

Link-loss feature for network redundancy

The loss of signal (LOS) feature allows for the system to recognize a lost connection between a specific hardware (For example, AXIS Network Cameras) and the host. For optimized network redundancy, AXIS T8612 signals the hardware in case of a lost connection or unusable connection for network traffic. This allows for the hardware to redirect the network traffic through a fallback connection, for example via RJ45.

For long distance connections

Fiber optic connections are typically used in city surveillance, airports and other long distance installations, where lighting strikes are a threat or great connection distances are required.
